TIG-10803 Yoke Puller Heavy Duty

Tiger Tool

$574.99

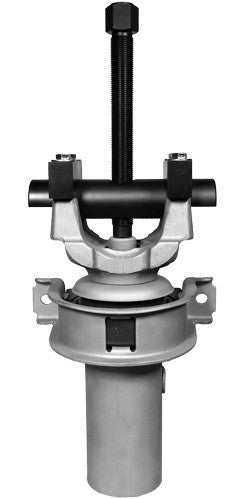

Yoke Puller Heavy Duty

Simplifies and expedites the removal of heavy-duty yokes on drive shafts, transmissions and rear-end differentials without damage to yokes or other components.

  • Manufactured from high-grade steel for strength and durability

  • Engineered for use with a 1” impact tool

  • Capable of generating over 25,000 lbs of pulling power

When it comes to quality, no detail is too small. To prolong the life of the forcing screw, the pull bar is precisely milled with a chamfer. The caps are designed with flexibility in mind to service an extensive range of class 6-8 trucks. Tackle more jobs with fewer parts using the 10803.

Application
Yokes with a bearing diameter between 1 7/8” and 2 3/16”
Spicer and Meritor 1610, 1710, 1760, 1810 Series
Spicer SPL 140, 170, 250 Series
Meritor/Rockwell RPL 20, 25 Series

The 10803 works on most yokes with a bearing diameter of 1 7/8″ and 2 3/16″. It is designed for heavy duty trucks with full and half round yokes.
