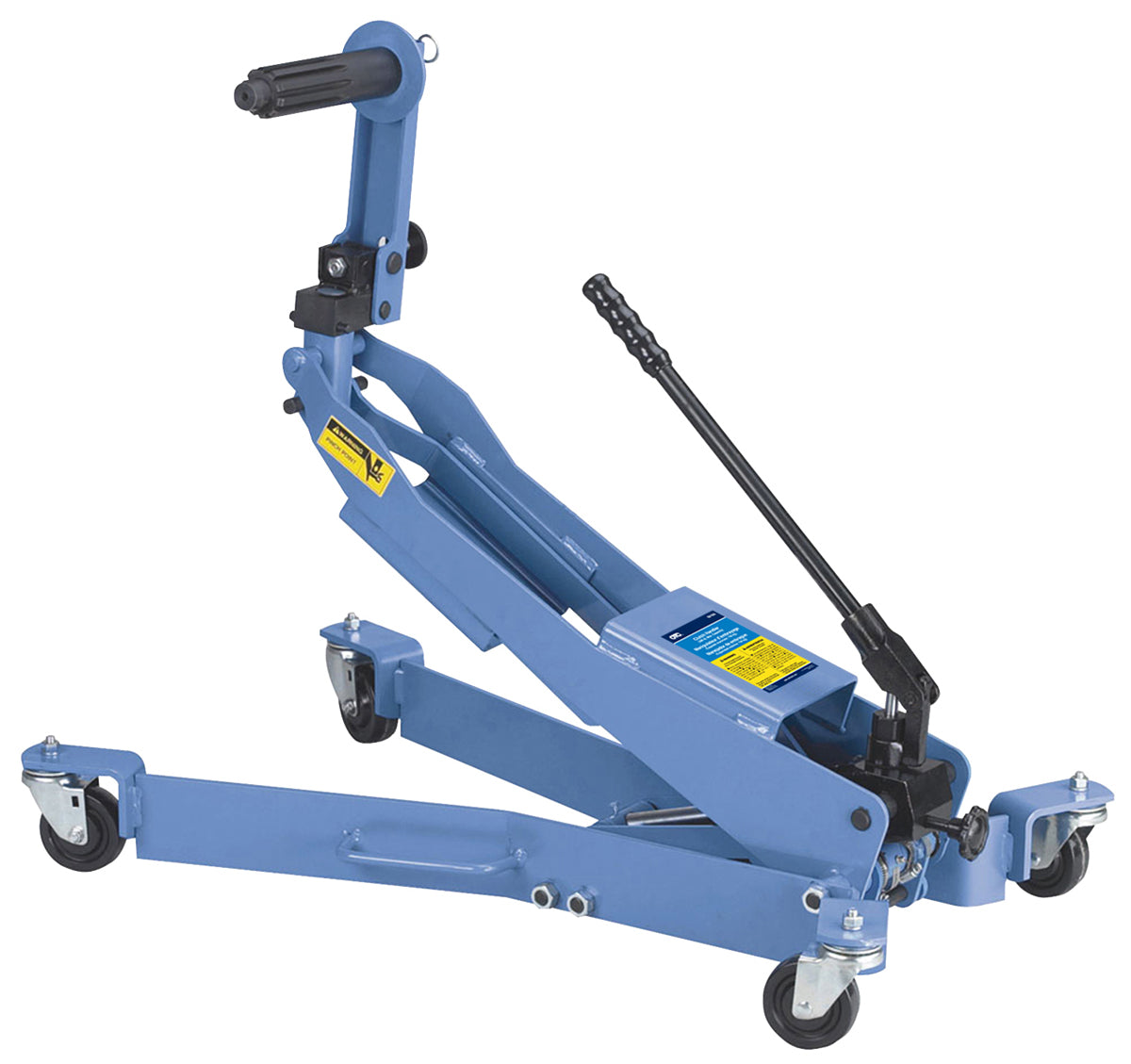

OTC-5018A Truck Clutch & Flywheel Handler

OTC

$686.45 $765.49

Truck Clutch & Flywheel Handler

Handles 14" and 15-1/2" clutch assemblies weighing up to 250 lbs.

Swivel casters provide easy maneuverability.

Includes a 2" splined shaft with a 1-1/4" pilot to aid in alignment.

360° swivel head.

Minimum height of 15" allows access below side faring.

When raised, centerline of clutch will be 38-1/4" off floor.

Floor space is 32-3/8" long by 24-1/2" at widest point.

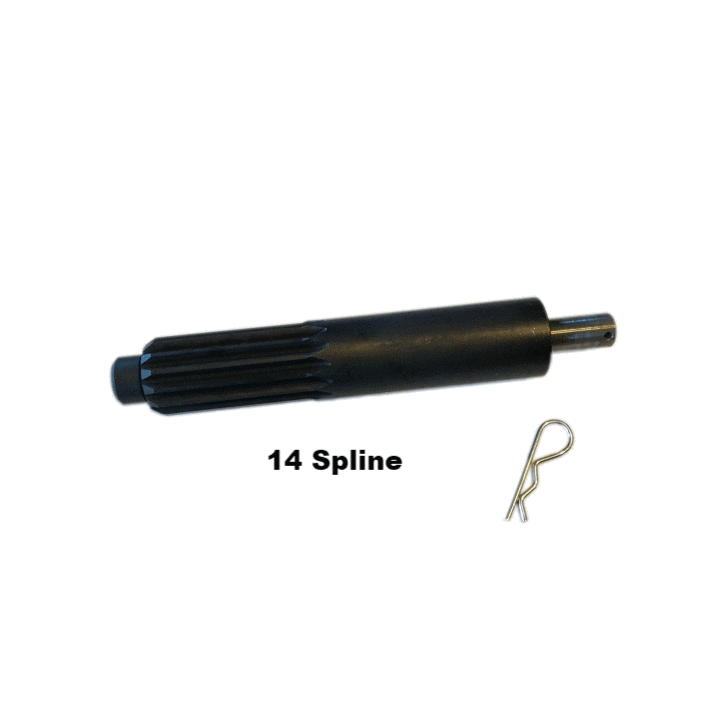

SEE ALSO BT-OTC 5018A 2"- 14 Spline

Splined Shaft (2" dia.; 1-1/4" pilot) 14 spline.

ALWAYS use caution when working around heavy objects as they could fail. NEVER place hands or have any body parts beneath the jack or clutch assembly.
Because this item's components are manufactured by others and custom modified at the customer's request, Brake Tech Tools, LLC assumes no express or implied warranty or liability to its use or breakage whatsoever.
