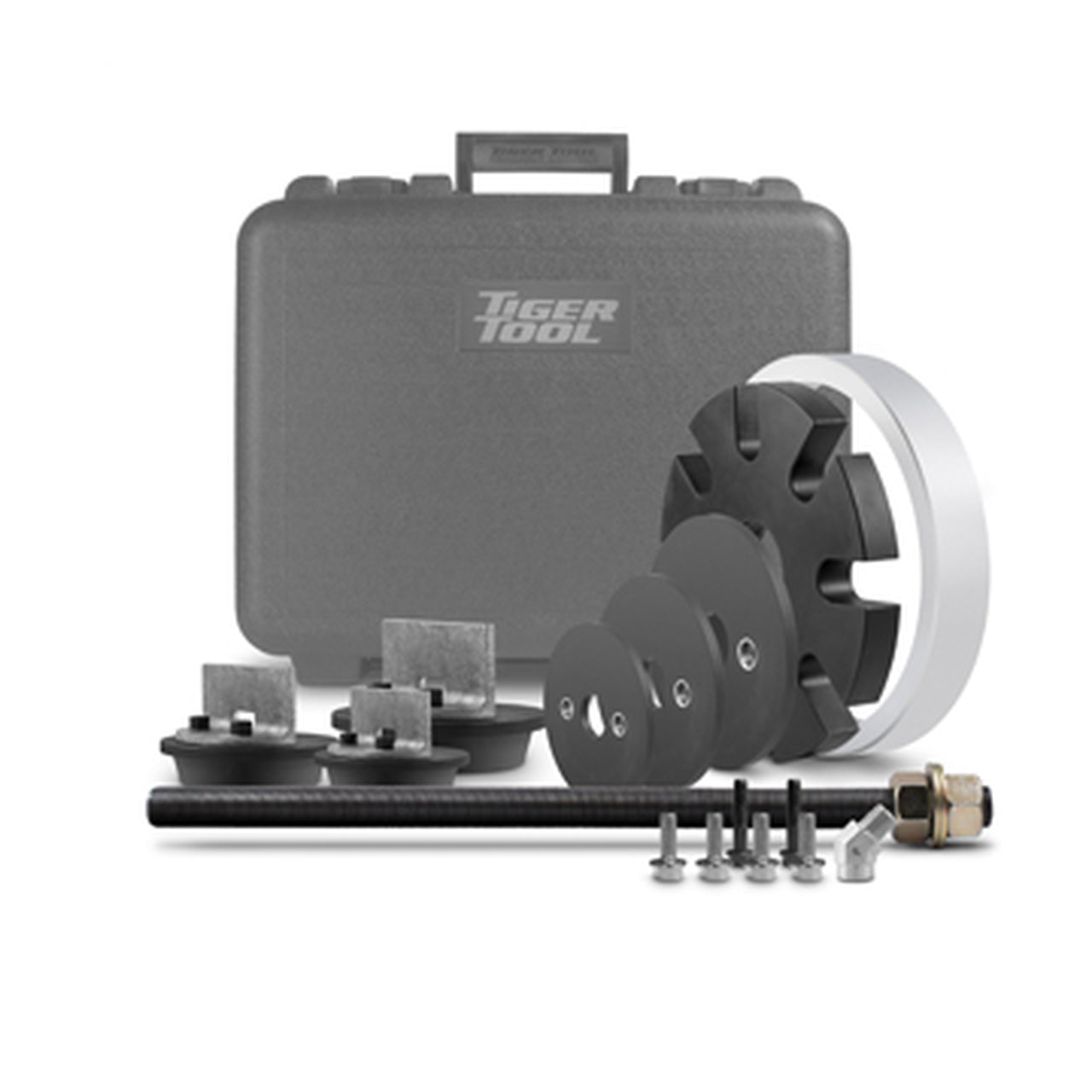

TIG-10910 Hydraulic Bearing Race Starter Kit w/o Cylinder

Tiger Tool

$926.99 $999.99

Bearing races can now be removed and installed precisely in minutes while the wheels remain on the hub. This is a hydraulically powered kit that horizontally services bearing races when used together with bearing specific adapters.

Features:

  • 20 tons of pulling power for efficient removal and installation of the race
  • Manufactured from high-grade steel for strength and durability
  • Also available as a non-hydraulic Bearing Race Starter Kit 10908

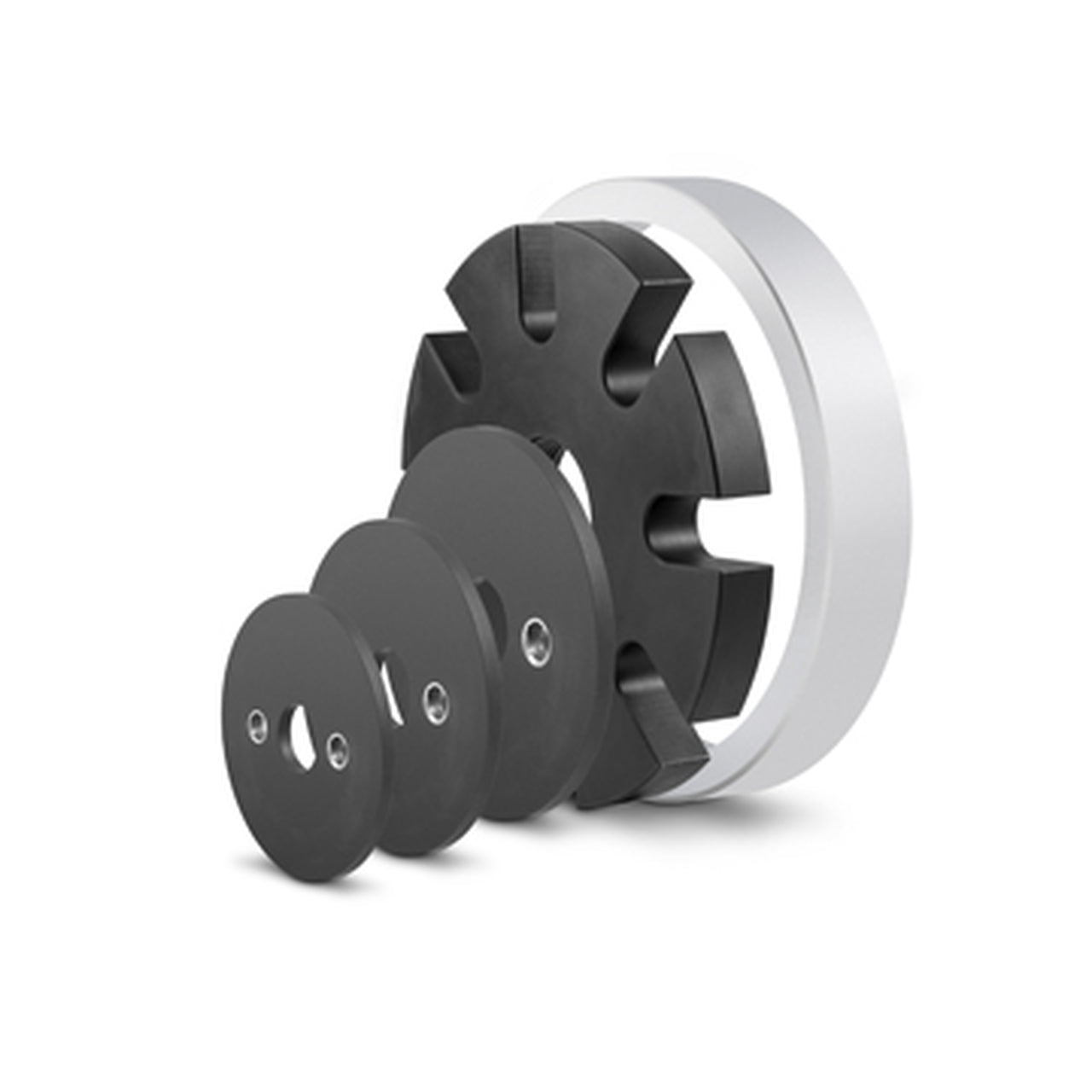

  • Includes an aluminum ring to mitigate the risk of damage to ABS ring located on the inboard side of the hub.

A more economical solution for servicing bearing races for those customers who already own the 17202 Hydraulic Cylinder, the 10910 combines with the 17202 to become a 10909 system. After the wheel and hub assembly have been removed from the truck, the Hydraulic Bearing Race Starter Kit is utilized to remove old races and install new ones with ease.

Removing and reinstalling the wheels can be time consuming—for technicians and their customers. Lug nuts require re-torquing after the first 50 to 100 miles of service, meaning the truck is off the road and back in the shop. By leaving the wheel mounted to the hub, the Bearing Race Starter Kit not only reduces shop time and reduces the likelihood of a wheel-off situation, but improves the lifespan of the wheel studs by not unnecessarily re-torquing them.
