Brake Pad Gauge

• SPEED UP your inspection process.

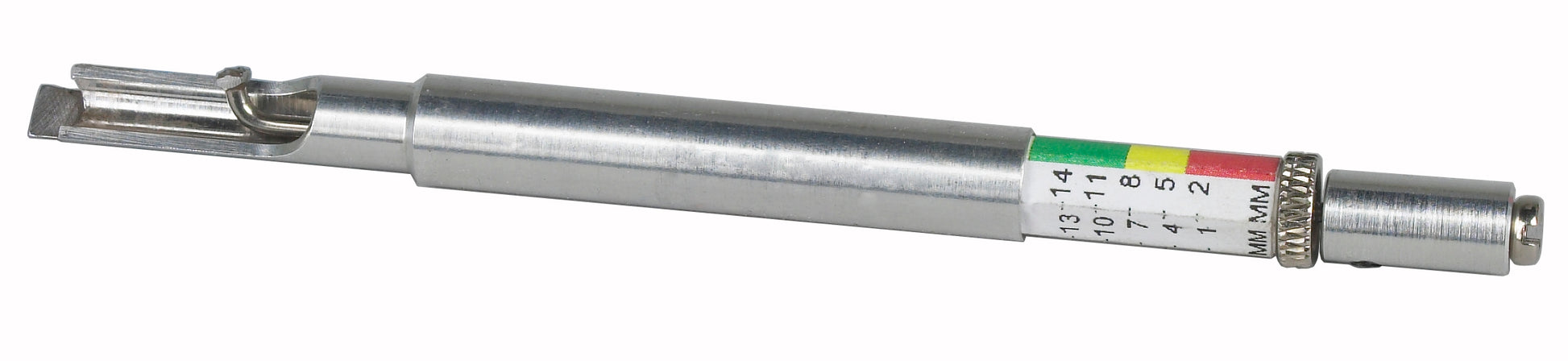

• The 6596 Brake Pad Gauge allows for a definitive measurement of brake pads to determine remaining life.

• Unique design allows for measurement on the vehicle without the removal of any components in most cases (wheel assembly or brake caliper).

• Quick reference of brake pad condition via color code scale.

•  Attain measurement without removing any parts from the vehicle.

Calibration Procedure

1. When probe tip is in locked position (resting on either body ledge), barrel measurement should be 4mm.

2. Adjust set screw and end screw as necessary to achieve 4mm.
