TIG-90150 King Pin Press, Heavy Duty

Tiger Tool


King Pin Press, Heavy Duty

King pins can now be removed in minutes with relative ease and efficiency.

  • Capable of generating 46,000 lbs of force yet weighs only 30 lbs

  • Anti-torque arms prevent twisting of the main body while under extreme force

  • Engineered for use with up to a 1” impact tool

Our 90150 was designed with a goal in mind: build the best king pin press possible that requires only one operator to use. We’ve optimized the end plates, manufacturing them out of high-grade steel into diamond shapes – drastically reducing the overall mass of the tool. Coming in at 75% less weight than our closest competitor, the results are huge savings in the tool’s overall weight.

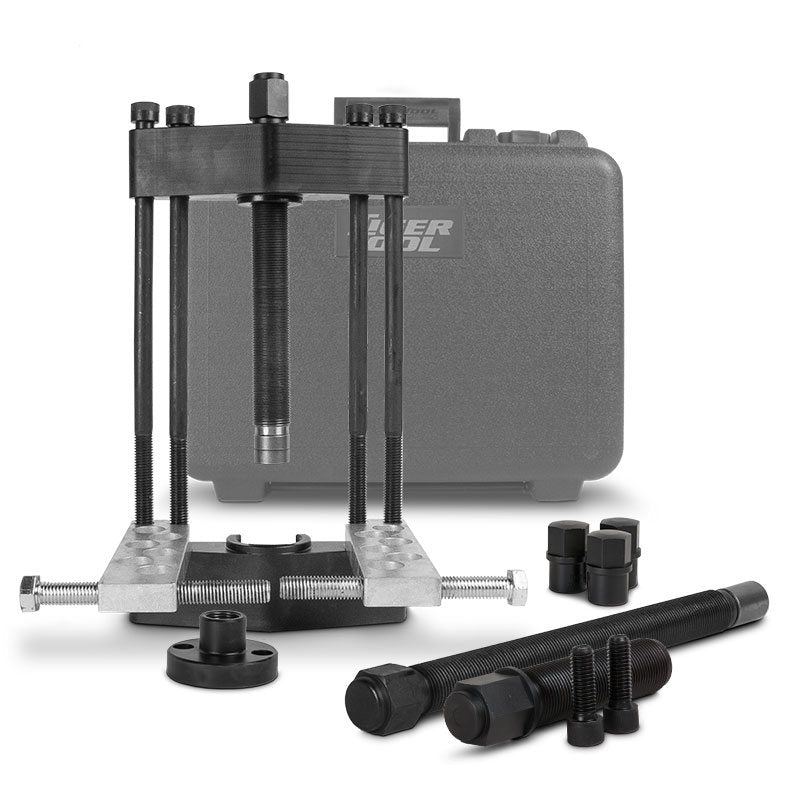

Our king pin press includes three different forcing screw options, giving you the ability to service everything from 3/4 ton pickups up to Class 8 trucks. A shortened 1 1/4” forcing screw allows you to access king pins from the hardest to reach places and tightest wheel wells – even on busses. We’ve also included our three most popular tie rod end removers: 7/8”, 3/4”, and 20mm.

Straight and tapered king pins from 7/8” to 2 5/32”

Isuzu NPR and GMC/Chevrolet W-series trucks require a custom adapter 90151

Not Compatible With
FL981 axles where the tie rod is cast to the spindle

U.S. Patent No. 9,511,488
